PTFE Molding Powder 4s02-A

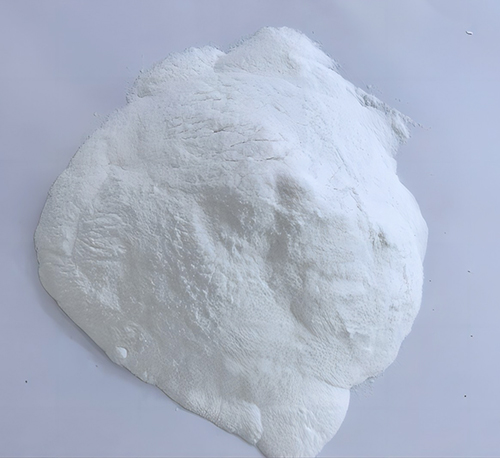

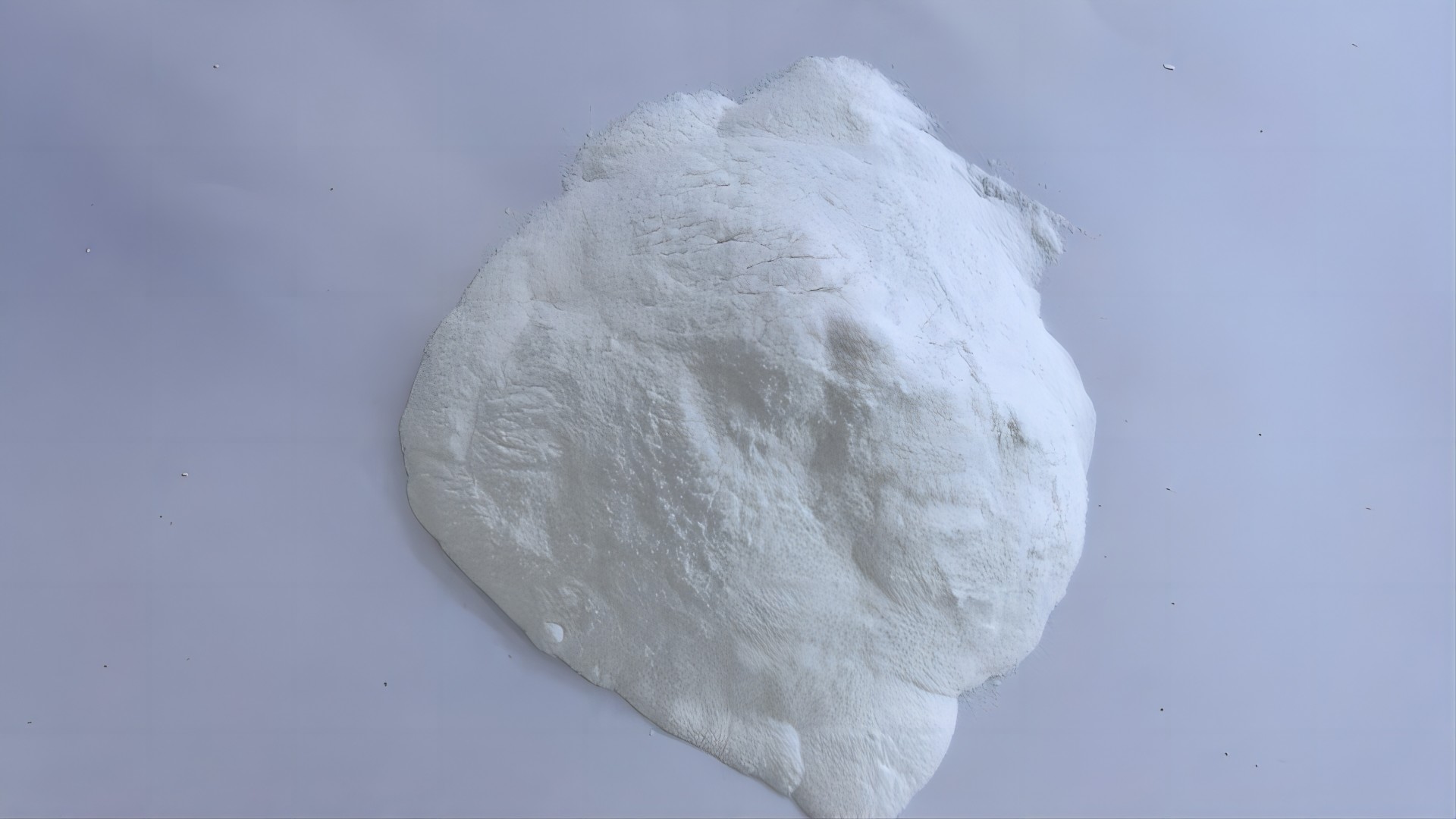

Polytetrafluoroethylene resin is white granules with unusual chemical stability, excellent electrical insulation, low coefficient of friction and other properties.
Serial number | item | unit | Technical index | |
First Grade | Qualified product | |||
1 | Cleanliness | a. The surface shall be white and uniform, and no impurities are allowed. b. There is no obvious color difference in the cross section of the 57mm diameter rod | The surface shall be clean and uniform, and metal impurities are not allowed. No more than 2 impurities less than or equal to 1mm | |
2 | tensile strength | MPa | ≥30.0 | ≥27.4 |
3 | elongation at break | % | ≥320 | ≥280 |
4 | bulk density | g/l | 300-450 | |
5 | Average particle size | µm | ≤45 | |
6 | Water content | % | ≤0.04 | |
7 | melting point | ℃ | 327±5 | |
8 | Standard relative density | 2.13～2.19 | ||
9 | Thermal instability coefficient | ≤30 | ||
10 | Electrical strength | MV/m | ≥120 | ≥100 |
Packaging and transportation

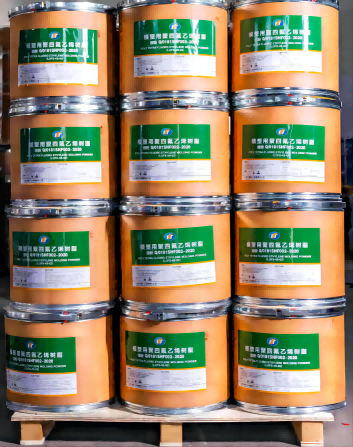

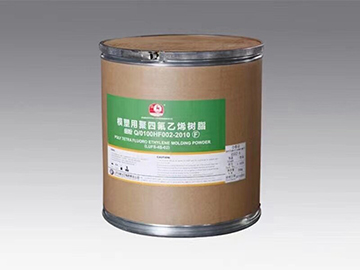

1.the product is packed in double plastic baggage and packed in cardboard drums with a internet content of 25kg in line with drum.
2.the product must be saved in a clean, cool and dry surroundings to keep away from the integration of dirt, water vapor and other impurities. the box ought to be stored tightly closed for the duration of garage, and the dust and other impurities ought to be avoided from intruding when the field is opened.
3.the product need to be transported as non-dangerous items. for the duration of transportation, keep away from moisture, warmth, violent vibration, collision and pressure, and save you resin from agglomeration.
service
1.provide customers with all sorts of technical session, can quick reflect patron needs, customized products.
2.spark off delivery, can be added to your door.
3.we are able to visit your own home to guide and return the products when you encounter nice troubles.
Manufacturing facility energy
Solid quality, extensive purchaser base, desirable recognition inside the industry
